> EATON - MOELLER > Disconnectors and Cam Switches > 014971

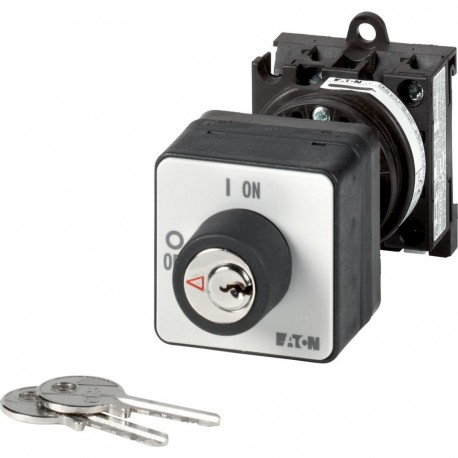

EATON - MOELLER T0-1-102/Z/S T0-1-102/Z/S 014971 Y7-14971 EATON ELECTRIC ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T0,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-102/Z/S 014971 Y7-14971 EATON ELECTRIC ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T0,..

T0-1-102/Z/S

014971

Y7-14971

EATON - MOELLER

1 Pcs.

ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T0, front plate 0-1, 90 °, maintained, rear mounting, P ON-OFF 2-pole disconnector switch 20 A Lock S-T0 Plate Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, rear mounting, 2 pole, with black thumb grip and front plate, Key operated lock mechanism S-T0 On-Off switch, Product range: Switch with locking mechanism, Part group reference: T0, 2 pole, locking arrangement: Key operated lock mechanism S-T0, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP53, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A , 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
014971
Model Code
T0-1-102/Z/S
EAN
4015080149712
Product Length/Depth
118 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.124 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
Catalog Notes

ETIM for 014971 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 20 A
Rated permanent current at AC-21, 400 V (EF009165) 20 A
Rated operation power at AC-3, 400 V (EF001364) 5.5 kW
Rated short-time withstand current lcw (EF007050) 0.32 kA
Rated operation power at AC-23, 400 V (EF007027) 5.5 kW
Switching power at 400 V (EF009166) 5.5 kW
Conditioned rated short-circuit current Iq (EF001444) 6 kA
Number of poles (EF001391) 2
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Key
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 48 mm
Height (EF000040) 48 mm
Depth (EF000049) 118 mm
