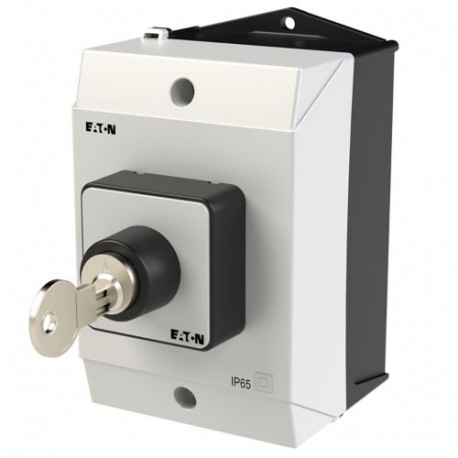

EATON - MOELLER T0-1-102/I1/S T0-1-102/I1/S 207063 Y7-207063 EATON ELECTRIC ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-102/I1/S 207063 Y7-207063 EATON ELECTRIC ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T..

T0-1-102/I1/S

207063

Y7-207063

EATON - MOELLER

1 Pcs.

ON-OFF switches, 2 pole, 20 A, Key operated lock mechanism S-T0, front plate 0-1, 90 °, maintained, surface mounting, P T0-1-102/I1/S Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, surface mounting, 2 pole, with black thumb grip and front plate, Key operated lock mechanism S-T0 On-Off switch, Product range: Switch with locking mechanism, Part group reference: T0, 2 pole, locking arrangement: Key operated lock mechanism S-T0, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP53, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A , 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enclosed ON-OFF switches are utilized throughout commercial and industrial facilities to provide direct local switching capabilities for single- or multi-phase equipment. This specific model features an integrated key-operated lock mechanism to prevent unauthorized actuation, making it ideal for machinery security and safety compliance protocols during maintenance routines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Rated permanent current at AC-23, 400 V (EF011777): 13.3 A
  • Rated permanent current at AC-21, 400 V (EF009165): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.32 kA
  • Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
  • Switching power at 400 V (EF009166): 5.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 6 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
207063
Model Code
T0-1-102/I1/S
EAN
4015082070632
Product Length/Depth
137 mm
Product Height
102 mm
Product Width
80 mm
Product Weight
0.358 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
