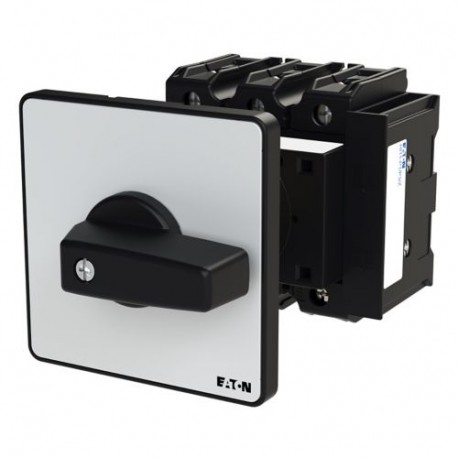

EATON - MOELLER P3-100/Z/HI11 P3-100/Z/HI11 093304 Y7-93304 EATON ELECTRIC On-Off switch, 3 pole + 1 N/O + 1 N/C, 100 A, rear mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/Z/HI11 093304 Y7-93304 EATON ELECTRIC On-Off switch, 3 pole + 1 N/O + 1 N/C, 100 A, rear mounting

P3-100/Z/HI11

093304

Y7-93304

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + 1 N/O + 1 N/C, 100 A, rear mounting ON-OFF disconnector switch 3 poles + 1 NO + 1 NC 100 A Mounting Eaton Moeller® series P3 On-Off switch, P3, 100 A, rear mounting, 3 pole, 1 N/O, 1 N/C, with black thumb grip and front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, with black thumb grip and front plate, Information about equipment supplied: Auxiliary contact or neutral conductor fitted by user., 3 pole, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller P3-100/Z/HI11 On-Off switch is a heavy-duty mechanical switching device used to manually disconnect electrical loads, control circuit paths, and manage power distribution across industrial machines and control panels. These industrial switches provide reliable interruption of high-current circuits during standard operation and routine maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
093304
Model Code
P3-100/Z/HI11
EAN
4015080933045
Product Length/Depth
150 mm
Product Height
114 mm
Product Width
90 mm
Product Weight
0.4 kg
Certifications
UL File No.: E36332
UL
CE
CSA Class No.: 3211-05
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60947
IEC/EN 60947-3
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
