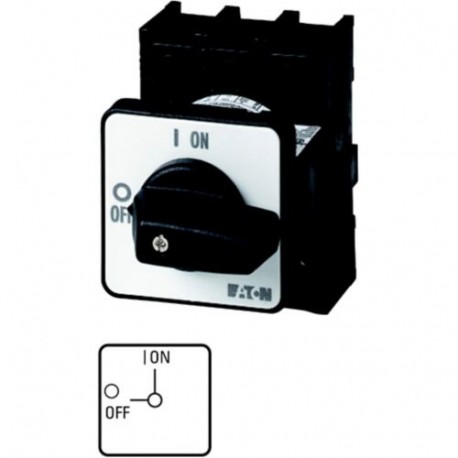

EATON - MOELLER P1-25/E-RT/HI11 P1-25/E-RT/HI11 002600 Y7-2600 EATON ELECTRIC On-Off switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop fu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/E-RT/HI11 002600 Y7-2600 EATON ELECTRIC On-Off switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop fu..

P1-25/E-RT/HI11

002600

Y7-2600

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + 1 N/O + 1 N/C, 25 A, Emergency-Stop function, flush mounting ON-OFF disconnector switch 3 poles + 1 NO + 1 NC 25 A Handle Eaton Moeller® series P1 On-Off switch, P1, 25 A, flush mounting, 3 pole, 1 N/O, 1 N/C, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Mounting method: Flush mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
002600
Model Code
P1-25/E-RT/HI11
EAN
4015080026006
Product Length/Depth
94 mm
Product Height
70 mm
Product Width
64 mm
Product Weight
0.181 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
UL
CSA-C22.2 No. 60947-4-1-14
CE
CSA
CSA-C22.2 No. 94
UL File No.: E36332
VDE 0660
IEC/EN 60204
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 002600 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) Yes
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 25 A
Rated permanent current at AC-23, 400 V (EF011777) 25 A
Rated permanent current at AC-21, 400 V (EF009165) 25 A
Rated operation power at AC-3, 400 V (EF001364) 7.5 kW
Rated short-time withstand current lcw (EF007050) 0.64 kA
Rated operation power at AC-23, 400 V (EF007027) 13 kW
Switching power at 400 V (EF009166) 13 kW
Conditioned rated short-circuit current Iq (EF001444) 50 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 1
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Red
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 64 mm
Height (EF000040) 70 mm
Depth (EF000049) 94 mm
