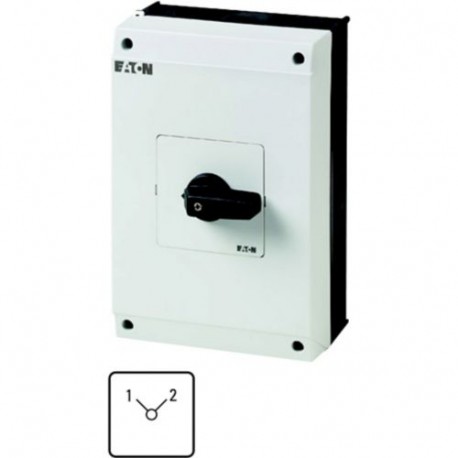

EATON - MOELLER T5B-2-8221/I4 T5B-2-8221/I4 207221 Y7-207221 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-2, 90 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-2-8221/I4 207221 Y7-207221 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-2, 90 °,..

T5B-2-8221/I4

207221

Y7-207221

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 63 A, front plate: 1-2, 90 °, maintained, surface mounting T5B-2-8221/I4 Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, surface mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8221 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 4, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-2-8221/I4 is an enclosed changeover switch designed to facilitate manual source selection and high-capacity electrical path switching in harsh environments. Housed units of this type protect internal mechanisms while allowing straightforward user control for heavy machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
207221
Model Code
T5B-2-8221/I4
EAN
4015082072216
Product Length/Depth
240 mm
Product Height
162 mm
Product Width
160 mm
Product Weight
1.171 kg
Certifications
CSA Class No.: 3211-05
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
CE
CSA
VDE 0660
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
UL
CSA File No.: 012528
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
