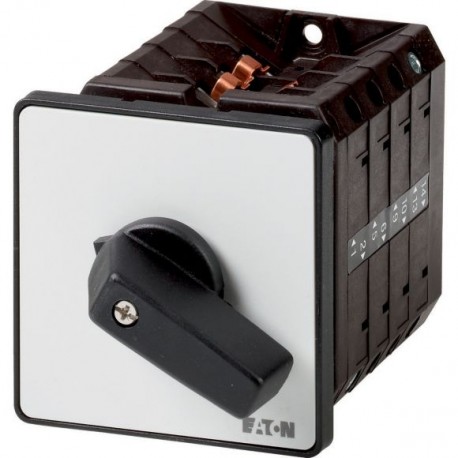

T5B-3-SOND*/E 907926 Y7-907926 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 3 contact unit..
T5B-3-SOND*/E
907926
Y7-907926
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T5B-3-SOND*/E non-standard switch functions as a heavy-duty rotary control device utilized for configuring complex circuit pathways in industrial systems. These components are typically mounted on machinery and electrical distribution boards for manual control tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
