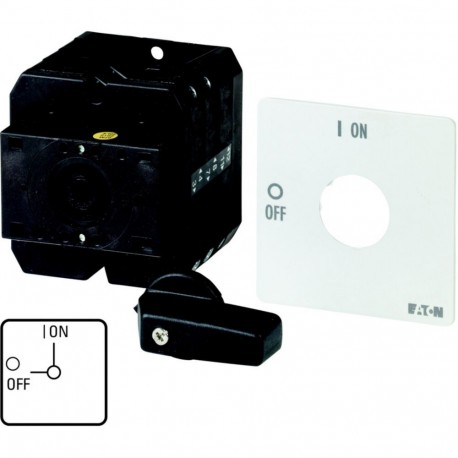

EATON - MOELLER T5B-3-8342/X T5B-3-8342/X 092298 Y7-92298 EATON ELECTRIC On-Off switch, 6 pole, 63 A, 90 °, rear mounting, Basic switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8342/X 092298 Y7-92298 EATON ELECTRIC On-Off switch, 6 pole, 63 A, 90 °, rear mounting, Basic switch

T5B-3-8342/X

092298

Y7-92298

EATON - MOELLER

1 Pcs.

On-Off switch, 6 pole, 63 A, 90 °, rear mounting, Basic switch ON-OFF disconnect switch. 6 poles. 63 A. 90°. Switch Eaton Moeller® series T5B On-Off switch, T5B, 63 A, rear mounting, Basic switch, 3 contact unit(s), 6 pole On-Off switch, Product range: On-Off switch, Part group reference: T5B, 6 pole, Design: rear mounting, Basic switch, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B On-off switch
Catalog Number
092298
Model Code
T5B-3-8342/X
EAN
4015080922988
Product Length/Depth
113 mm
Product Height
85 mm
Product Width
85 mm
Product Weight
0.55 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 092298 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 63 A
Rated permanent current at AC-21, 400 V (EF009165) 63 A
Rated operation power at AC-3, 400 V (EF001364) 22 kW
Rated short-time withstand current lcw (EF007050) 1.3 kA
Rated operation power at AC-23, 400 V (EF007027) 30 kW
Switching power at 400 V (EF009166) 30 kW
Conditioned rated short-circuit current Iq (EF001444) 2 kA
Number of poles (EF001391) 6
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 85 mm
Height (EF000040) 85 mm
Depth (EF000049) 113 mm
