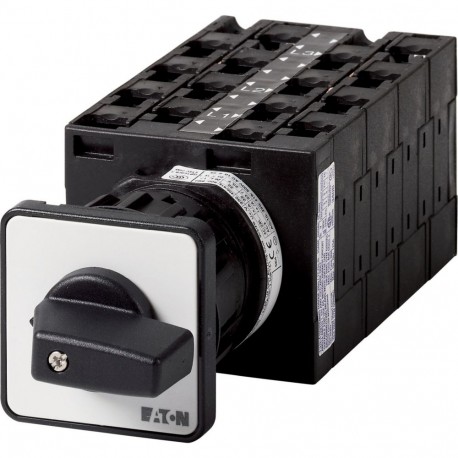

EATON - MOELLER T3-8-8372/EZ T3-8-8372/EZ 004508 Y7-4508 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-8-8372/EZ 004508 Y7-4508 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, m..

T3-8-8372/EZ

004508

Y7-4508

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, maintained, centre mounting Switch 16 pole 32 A Indicator plate: 1-2 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, centre mounting, 8 contact unit(s), Contacts: 16, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8372 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 16, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeoverswitch (part number T3-8-8372/EZ) is built to handle complex multi-circuit switching operations in demanding automation and electrical distribution environments. These robust rotary switches facilitate safe manual transitions between active power sources.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 8
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
004508
Model Code
T3-8-8372/EZ
EAN
4015080045083
Product Length/Depth
182 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.412 kg
Certifications
UL 60947-4-1
IEC/EN 60947
VDE 0660
CE
UL File No.: E36332
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-07
CSA File No.: 012528
UL Category Control No.: NLRV
IEC/EN 60204
UL
CSA
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
