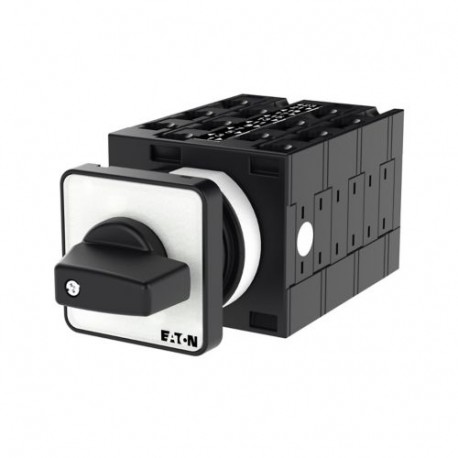

EATON - MOELLER T3-6-8459/E T3-6-8459/E 004460 Y7-4460 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 3 speeds, 2 separate win.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-6-8459/E 004460 Y7-4460 EATON ELECTRIC Multi-speed switches, Contacts: 11, 32 A, 3 speeds, 2 separate win..

T3-6-8459/E

004460

Y7-4460

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 11, 32 A, 3 speeds, 2 separate windings, front plate: 0-1-2-3, 60 °, maintained, flush mounting Multi-speed switch 11 poles 32 A 2 speeds 2 windings Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, flush mounting, 6 contact unit(s), Contacts: 11, 60 °, maintained, With 0 (Off) position, 0-1-2-3, Design number 8459 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 11, Degree of Protection: Front IP65, Design: flush mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-1-2-3, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T3-6-8459/E is a multi-speed switch engineered to govern complex pole-changing motors across industrial production machinery. It allows operators to manually cycle through distinct rotational speeds by adjusting internal contact configurations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Pole switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
004460
Model Code
T3-6-8459/E
EAN
4015080044604
Product Length/Depth
137 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.332 kg
Certifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL 60947-4-1
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
CSA File No.: 012528
UL
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
