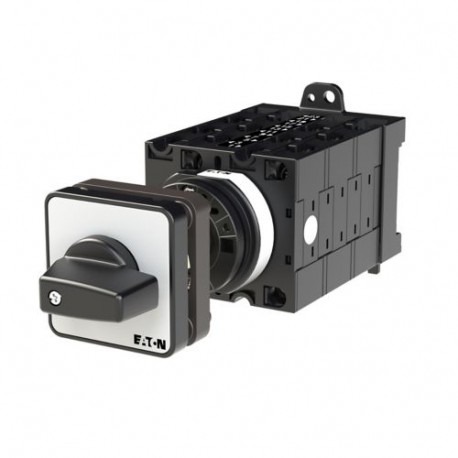

T3-6-8370/Z 078449 Y7-78449 EATON ELECTRIC Changeoverswitches, Contacts: 12, 32 A, front plate: 1-2, 90 °, m..
T3-6-8370/Z
078449
Y7-78449
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T3-6-8370/Z changeover switches provide manual circuit redirection within complex industrial control environments, allowing operators to seamlessly toggle between distinct power sources or operational pathways. Their robust switching mechanism makes them ideal for heavy-duty switching tasks in switchgear assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 6
- With zero (off) position (EF001416): No
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 32 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
- Rated operation power at AC-3, 400 V (EF001364): 12 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): Yes
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60204
CSA
CSA Class No.: 3211-07
IEC/EN 60947-3
UL
UL 60947-4-1
CE
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
