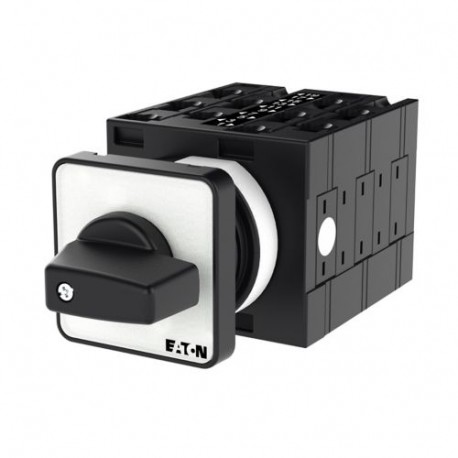

Reversing star-delta switches, Contacts: 10, 32 A, front plate: D-Y-0-Y-D, 60 °, maintained, flush mounting Star-Triangle Switch with Inversion; 10 poles; 32 A; Plaque Eaton Moeller® series T3 Reversing star-delta switches, T3, 32 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15896 Turnaround star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A reversing star-delta switch is an electromechanical control component used to manage the startup sequence and rotational direction of heavy-duty induction motors, reducing inrush current. This Eaton Moeller unit, part number T3-5-15896/E, is built for front mounting in industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Turnaround star-delta switch
Catalog Number
004114
Model Code
T3-5-15896/E
EAN
4015080041146
Product Length/Depth
125 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.292 kg
Certifications
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
UL
VDE 0660
IEC/EN 60947
CSA
CSA Class No.: 3211-05
CSA File No.: 012528
UL 60947-4-1
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 94
IEC/EN 60204
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet
