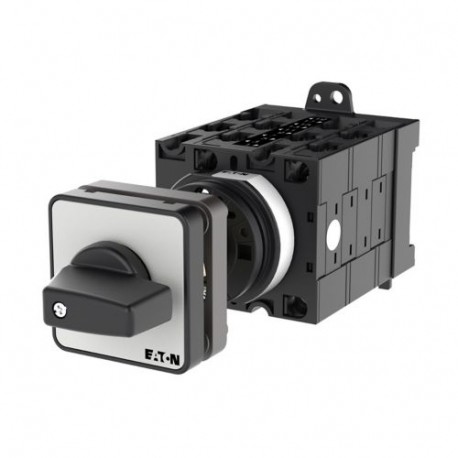

EATON - MOELLER T3-5-15876/Z T3-5-15876/Z 019149 Y7-19149 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate: .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15876/Z 019149 Y7-19149 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate: ..

T3-5-15876/Z

019149

Y7-19149

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 32 A, front plate: D-Y-0-Y-D, 60 °, maintained, rear mounting Star-Triangle Switch with 10-Pole Reversal 32 A Plate Eaton Moeller® series T3 Reversing star-delta switches, T3, 32 A, rear mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part number T3-5-15876/Z is a reversing star-delta switch built to manage the smooth startup sequence of large induction motors. By controlling winding configurations during startup, this type of switch reduces inrush current stress on electrical distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Turnaround star-delta switch
Catalog Number
019149
Model Code
T3-5-15876/Z
EAN
4015080191490
Product Length/Depth
167 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.29 kg
Certifications
UL
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
CE
CSA-C22.2 No. 94
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
