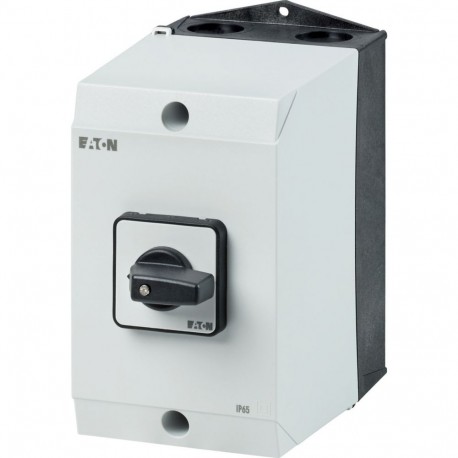

EATON - MOELLER T3-5-15876/I2 T3-5-15876/I2 207537 Y7-207537 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15876/I2 207537 Y7-207537 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 32 A, front plate..

T3-5-15876/I2

207537

Y7-207537

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 32 A, front plate: D-Y-0-Y-D, 60 °, maintained, surface mounting T3-5-15876/I2 Eaton Moeller® series T3 Reversing star-delta switches, T3, 32 A, surface mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, Design number 15876 Turnaround star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Turnaround star-delta switch
Catalog Number
207537
Model Code
T3-5-15876/I2
EAN
4015082075378
Product Length/Depth
181 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.658 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
IEC/EN 60947
CSA Class No.: 3211-05
CE
CSA File No.: 012528
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL
CSA
UL Category Control No.: NLRV
IEC/EN 60204
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 207537 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Turnaround star-delta switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 18.5 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) Yes
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
