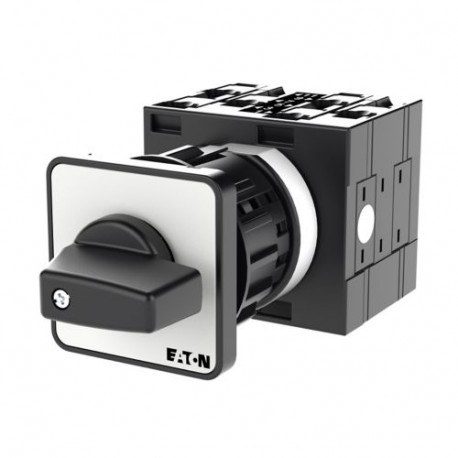

EATON - MOELLER T3-3-8151/EZ T3-3-8151/EZ 019399 Y7-19399 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: Höher 0 Tief.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-8151/EZ 019399 Y7-19399 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: Höher 0 Tief..

T3-3-8151/EZ

019399

Y7-19399

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 5, 32 A, front plate: Höher>0 5-pole inverter switch 32 A Indicator plate: Höher>0 Eaton Moeller® series T3 Reversing switches, T3, 32 A, center mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, With 0 (Off) position, with spring-return from both directions to 0, Höher>0

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T3-3-8151/EZ is a reversing switch engineered to alter the direction of rotation in industrial motors and actuators. These dependable rotary switches allow operators to safely command forward and reverse movements in material handling systems and heavy equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-3-8151/EZ
  • Catalogue code: 019399
  • Catalogue title: T3-3-8151/EZ 019399 Y7-19399 EATON ELECTRIC Reversing switches, Contacts: 5, 32 A, front plate: Höher 0 Tief..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Reversing switch Catalog Number 019399 Model Code T3-3-8151/EZ EAN 4015080193999 Product Length/Depth 124 mm Product Height 54 mm Product Width 61 mm Product W
  • Manufacturer summary: Reversing switches, Contacts: 5, 32 A, front plate: Höher>0 5-pole inverter switch 32 A Indicator plate: Höher>0 Eaton Moeller® series T3 Reversing switches, T3, 32 A, center mounting, 3 contact unit(s), Contacts: 5, 45

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
019399
Model Code
T3-3-8151/EZ
EAN
4015080193999
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL Category Control No.: NLRV
UL 60947-4-1
VDE 0660
CE
CSA File No.: 012528
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
