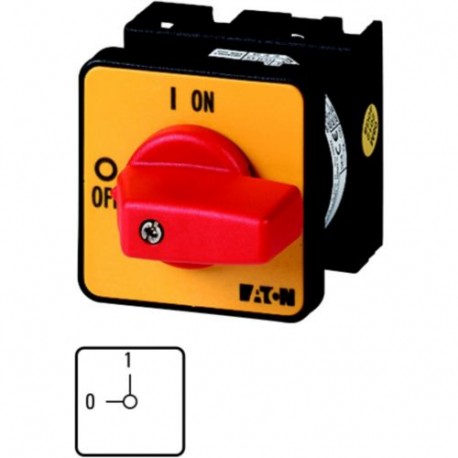

T0-1-102/E-RT 009046 Y7-9046 EATON ELECTRIC On-Off switch, 2 pole, 20 A, Emergency-Stop function, 90 °, flus..
T0-1-102/E-RT
009046
Y7-9046
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Equipped with an integrated emergency-stop function, this on-off switch provides dependable manual control and circuit interruption for industrial machinery panels. Components of this variety are routinely integrated into control desks and operator interfaces to halt equipment operations instantly when safety hazards arise. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 20 A
- Rated permanent current at AC-21, 400 V (EF009165): 20 A
- Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
- Rated short-time withstand current lcw (EF007050): 0.32 kA
- Rated operation power at AC-23, 400 V (EF007027): 5.5 kW
- Switching power at 400 V (EF009166): 5.5 kW
- Conditioned rated short-circuit current Iq (EF001444): 6 kA
- Number of poles (EF001391): 2
More info
▲General specifications
VDE 0660
CE
CSA
CSA File No.: 012528
IEC/EN 60947
UL File No.: E36332
UL 60947-4-1
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL
