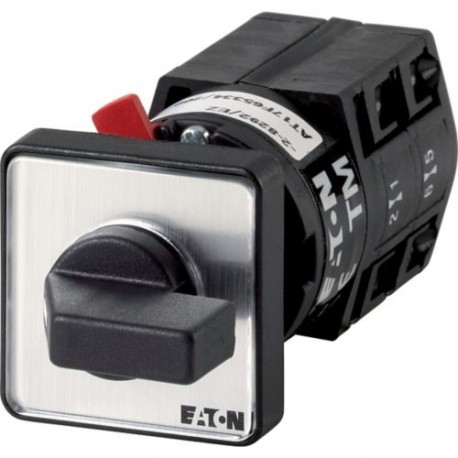

TM-2-8550/EZ 000699 Y7-699 EATON ELECTRIC Coding switches, Contacts: 4, 10 A, BCD Code 0-9, front plate: 0-9..

TM-2-8550/EZ

000699

Y7-699

EATON - MOELLER

1 Pcs.

Coding switches, Contacts: 4, 10 A, BCD Code 0-9, front plate: 0-9, 30 °, maintained, centre mounting Encoder switch; 4 poles; 10 A; Binary code BCD 0-9; Plaque Eaton Moeller® series TM Coding switches, TM, 10 A, centre mounting, 2 contact unit(s), Contacts: 4, 30 °, maintained, With 0 (Off) position, 0-9, Design number 8550 Coding switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: center mounting, switching function: BCD Code 0-9, Switching angle: 30 °, Switching performance: maintained, With 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 10 A, front plate: 0-9

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller coding switch, identified by part number TM-2-8550/EZ, allows manual input of numerical codes and configuration parameters within automated control systems. Engineers utilize such rotary coding switches for precise mode selection and device addressing in industrial setups.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Coding switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 500 V
  • Rated permanent current Iu (EF001389): 10 A
  • Number of switch positions (EF000231): 10
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 30x30 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
000699
Model Code
TM-2-8550/EZ
EAN
4015080006992
Product Length/Depth
87 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.044 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
VDE 0660
CE
UL File No.: E36332
Certified by UL for use in Canada
CSA-C22.2 No. 14-05
IEC/EN 60947
UL Category Control No.: NLRV
CSA
IEC/EN 60947-5-1
UL 508
UL
UL report applies to both US and Canada

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
