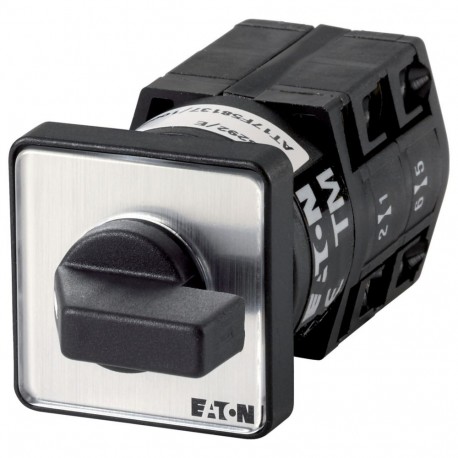

EATON - MOELLER TM-2-8400/E TM-2-8400/E 013181 Y7-13181 EATON ELECTRIC Reversing switches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-2-8400/E 013181 Y7-13181 EATON ELECTRIC Reversing switches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, ..

TM-2-8400/E

013181

Y7-13181

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 4, 10 A, front plate: 1-0-2, 60 °, maintained, flush mounting 4-Pole Inverter Switch 10A Indicator Plate: 1-0-2 60° Eaton Moeller® series TM Reversing switches, TM, 10 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8400 Reversing switch, Product range: Control switches, Part group reference: TM, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller reversing switch (part number TM-2-8400/E) provides manual control for reversing the direction of rotation in small motors or toggling control signals in industrial automation machinery. Such devices are standard in conveyor controls, hoist systems, and positioning equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 10 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Insulated enclosure
Catalog Number
013181
Model Code
TM-2-8400/E
EAN
4015080131816
Product Length/Depth
74 mm
Product Height
30 mm
Product Width
30 mm
Product Weight
0.04 kg
Certifications
UL report applies to both US and Canada
IEC/EN 60947-5-1
VDE 0660
UL
Certified by UL for use in Canada
IEC/EN 60947
UL File No.: E36332
CSA-C22.2 No. 94
CSA
UL Category Control No.: NLRV
IEC/EN 60947-3
CE
UL 508
CSA-C22.2 No. 14-05
