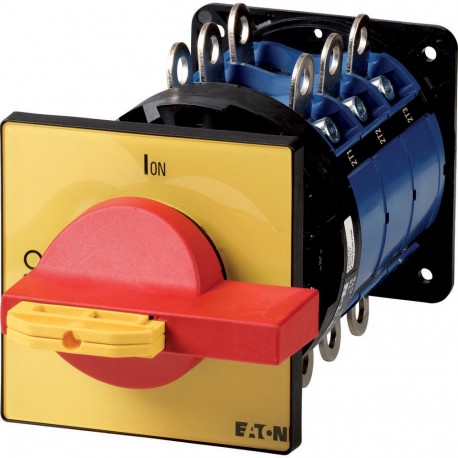

EATON - MOELLER T8-3-8342/V/SVB/HI11 T8-3-8342/V/SVB/HI11 200620 Y7-200620 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 315 A, Emergency-S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T8-3-8342/V/SVB/HI11 200620 Y7-200620 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 315 A, Emergency-S..

T8-3-8342/V/SVB/HI11

200620

Y7-200620

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 1 N/O + 1 N/C, 315 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, rear mounting T8-3-8342/V/SVB/HI11 Eaton Moeller® series T8 Main switch, T8, 315 A, rear mounting, 3 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T8, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 132 kW, Rated uninterrupted current: Iu = 315 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller main switch and emergency-stop assembly (T8-3-8342/V/SVB/HI11) provides dual-function capabilities for safely shutting down machinery during routine operations and emergency crises. Multi-pole industrial safety switches protect operators by completely breaking all active power lines feeding heavy equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 1000 V
  • Rated permanent current Iu (EF001389): 315 A
  • Rated permanent current at AC-23, 400 V (EF011777): 245 A
  • Rated permanent current at AC-21, 400 V (EF009165): 315 A
  • Rated operation power at AC-3, 400 V (EF001364): 55 kW
  • Rated short-time withstand current lcw (EF007050): 4.2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 132 kW
  • Switching power at 400 V (EF009166): 132 kW
  • Conditioned rated short-circuit current Iq (EF001444): 5 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T8 Main switch
Catalog Number
200620
Model Code
T8-3-8342/V/SVB/HI11
EAN
4015082006204
Product Length/Depth
310 mm
Product Height
160 mm
Product Width
130 mm
Product Weight
3.5 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
