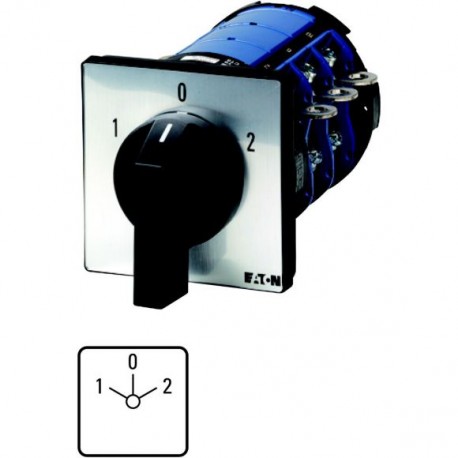

EATON - MOELLER T8-3-8212/E/HI12 T8-3-8212/E/HI12 214782 Y7-214782 EATON ELECTRIC Changeoverswitches, Contacts: 9, 315 A, front plate: 1-0-2,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T8-3-8212/E/HI12 214782 Y7-214782 EATON ELECTRIC Changeoverswitches, Contacts: 9, 315 A, front plate: 1-0-2,..

T8-3-8212/E/HI12

214782

Y7-214782

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 9, 315 A, front plate: 1-0-2, 60 °, maintained, flush mounting T8-3-8212/E/HI12 Eaton Moeller® series T8 Changeoverswitches, T8, 315 A, flush mounting, 3 contact unit(s), Contacts: 9, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: T8, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 132 kW, Rated uninterrupted current: Iu = 315 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T8-3-8212/E/HI12 is a heavy-duty changeover switch designed to handle high-amperage electrical routing in demanding industrial environments. High-capacity cam switches are typically utilized in main power distribution setups and large motor control applications to redirect electrical loads securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 315 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 105 A
  • Rated operation power at AC-3, 400 V (EF001364): 55 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T8 Changeover switch
Catalog Number
214782
Model Code
T8-3-8212/E/HI12
EAN
4015082147822
Product Length/Depth
130 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
3.02 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
