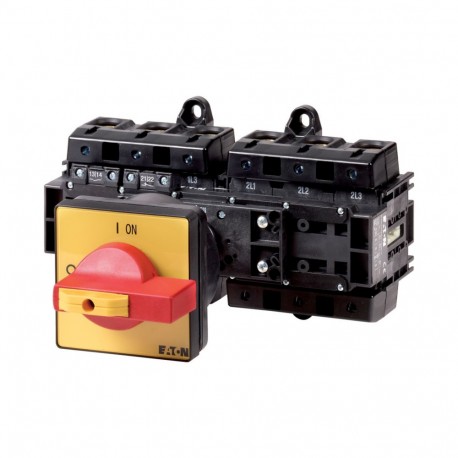

EATON - MOELLER T6-160-6/V/SVB/HI11 T6-160-6/V/SVB/HI11 200619 Y7-200619 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 160 A, Emergency-St.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T6-160-6/V/SVB/HI11 200619 Y7-200619 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 160 A, Emergency-St..

T6-160-6/V/SVB/HI11

200619

Y7-200619

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 1 N/O + 1 N/C, 160 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, rear mounting T6-160-6/V/SVB/HI11 Eaton Moeller® series T6 Main switch, T6, 160 A, rear mounting, 6 contact unit(s), 6 pole, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T6, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 6 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 160 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty power isolation in large electrical distribution panels is commonly achieved using a T6-160-6/V/SVB/HI11 200619 Y7-200619 EATON ELECTRIC Main switch to safely interrupt high-current loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 160 A
  • Rated permanent current at AC-23, 400 V (EF011777): 105 A
  • Rated permanent current at AC-21, 400 V (EF009165): 160 A
  • Rated operation power at AC-3, 400 V (EF001364): 45 kW
  • Rated short-time withstand current lcw (EF007050): 3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 30 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T6 Main switch
Catalog Number
200619
Model Code
T6-160-6/V/SVB/HI11
EAN
4015082006198
Product Length/Depth
200 mm
Product Height
140 mm
Product Width
225 mm
Product Weight
2.2 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
