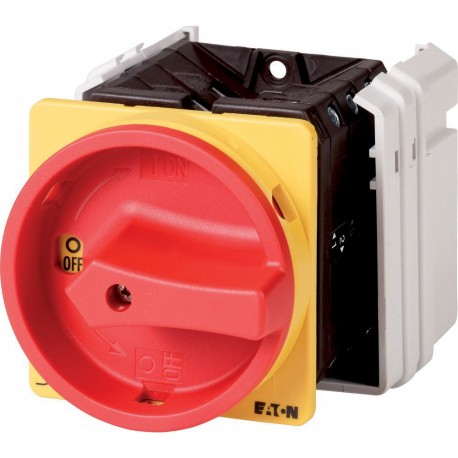

T5B-4-8343/EA/SVB 092074 Y7-92074 EATON ELECTRIC Main switch, 7-pole, 63 A, Emergency-Stop function, 90 °, f..
T5B-4-8343/EA/SVB
092074
Y7-92074
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller T5B-4-8343/EA/SVB is a multi-pole main switch equipped with emergency-stop functionality to secure machinery during hazardous situations. Facilities rely on such devices to guarantee safe operational shutdowns and protect maintenance personnel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 7
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA
UL Category Control No.: NLRV
UL File No.: E36332
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL 60947-4-1
IEC/EN 60947-3
UL
IEC/EN 60204
CSA-C22.2 No. 94
VDE 0660
CSA Class No.: 3211-05
