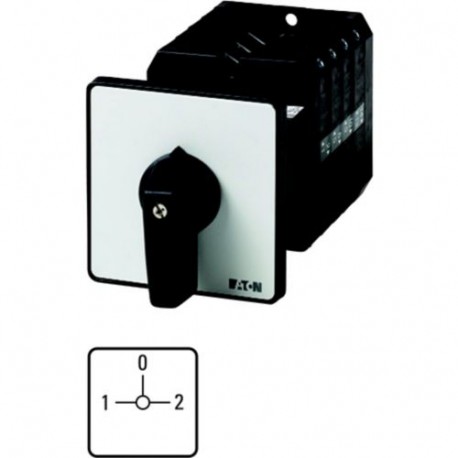

T5B-4-8294/Z 092081 Y7-92081 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 90 °,..
T5B-4-8294/Z
092081
Y7-92081
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller T5B-4-8294/Z changeover switch directs medium-to-high capacity currents between multiple circuits in demanding industrial environments. These robust switching devices provide secure manual control over complex power distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 4
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 63 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Degree of protection (IP), front side (EF003118): IP65
- Degree of protection (NEMA), front side (EF011961): 12
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): No
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): Yes
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
More info
▲General specifications
IEC/EN 60204
UL File No.: E36332
CE
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA File No.: 012528
UL
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
CSA
IEC/EN 60947
UL 60947-4-1
