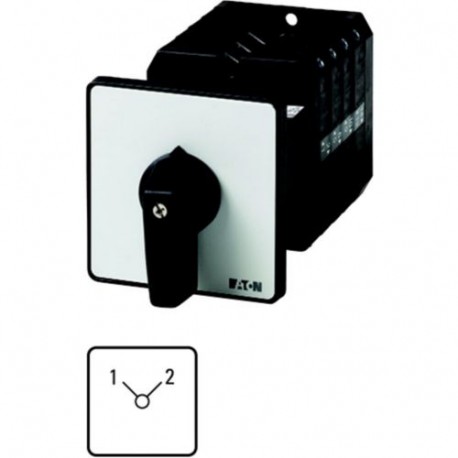

EATON - MOELLER T5B-4-8223/Z T5B-4-8223/Z 092105 Y7-92105 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8223/Z 092105 Y7-92105 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-2, 90 °, m..

T5B-4-8223/Z

092105

Y7-92105

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 63 A, front plate: 1-2, 90 °, maintained, rear mounting Switch Switch 8 poles 63 A Indicator plate: 1-2 90° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 4 contact unit(s), Contacts: 8, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8223 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A high-capacity changeoverswitch from Eaton Moeller (part number T5B-4-8223/Z) provides robust manual circuit selection and source switching for heavy electrical loads in demanding industrial environments. Industrial installations utilize changeoverswitches to toggle between primary and secondary power lines or control circuits safely.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
092105
Model Code
T5B-4-8223/Z
EAN
4015080921059
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.769 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-05
VDE 0660
CSA
IEC/EN 60204
UL
UL 60947-4-1
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
CE
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
