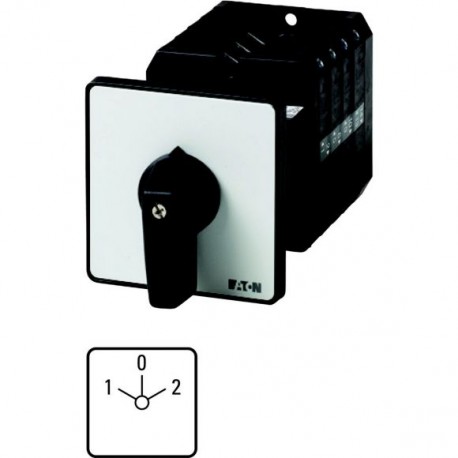

EATON - MOELLER T5B-4-8213/Z T5B-4-8213/Z 092109 Y7-92109 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8213/Z 092109 Y7-92109 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 60 °,..

T5B-4-8213/Z

092109

Y7-92109

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch 8 poles 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 4 contact unit(s), Contacts: 8, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8213

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Eaton Moeller, the T5B-4-8213/Z changeoverswitch routes heavy-duty electrical loads across industrial power networks. Maintenance teams utilize high-current changeover switches to manually toggle system power between alternative sources. Rear mounting ensures solid mechanical installation inside large control cabinets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T5B-4-8213/Z
  • Catalogue code: 092109
  • Catalogue title: T5B-4-8213/Z 092109 Y7-92109 EATON ELECTRIC Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 60 °,..
  • Product description: General specifications Product Name Eaton Moeller® series T5B Changeover switch Catalog Number 092109 Model Code T5B-4-8213/Z EAN 4015080921097 Product Length/Depth 182 mm Product Height 88 mm Product Width 88 mm Product
  • Manufacturer summary: Changeoverswitches, Contacts: 8, 63 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch 8 poles 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 4 c

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
092109
Model Code
T5B-4-8213/Z
EAN
4015080921097
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.769 kg
Certifications
IEC/EN 60204
CE
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
CSA
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
UL 60947-4-1
UL
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
