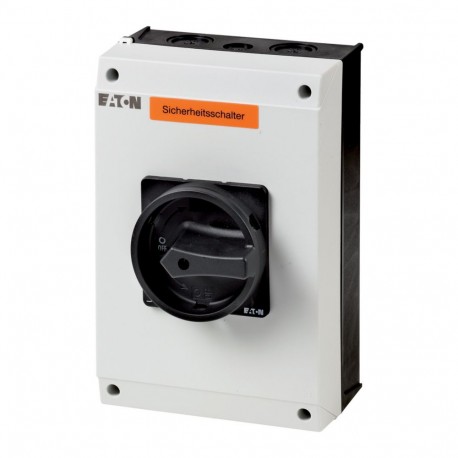

EATON - MOELLER T5B-4-15682/I4-SI-SW T5B-4-15682/I4-SI-SW 207255 Y7-207255 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,63 A,Emergency stop functi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-15682/I4-SI-SW 207255 Y7-207255 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,63 A,Emergency stop functi..

T5B-4-15682/I4-SI-SW

207255

Y7-207255

EATON - MOELLER

1 Pcs.

safety switch,6p+1 N/O+1 N/C,63 A,Emergency stop function,Lockable in position 0 with cover interlock,surface mount.,w. warning label „safety switch” T5B-4-15682/I4-SI-SW Eaton Moeller® series T5B Safety switch, T5B, 63 A, 6 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „safety switch”, 6 pole, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-4-15682/I4-SI-SW functions as a safety switch designed to secure machinery networks against accidental startup during maintenance operations. These multi-pole switching devices are essential for interrupting main power lines safely across complex automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Version of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Safety switch
Catalog Number
207255
Model Code
T5B-4-15682/I4-SI-SW
EAN
4015082072551
Product Length/Depth
167 mm
Product Height
175 mm
Product Width
125 mm
Product Weight
1.435 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
