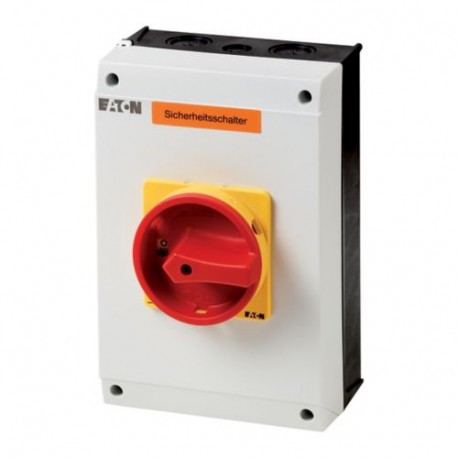

T5B-4-15682/I4-SI 207254 Y7-207254 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,63 A,Emergency-Stop function,..
T5B-4-15682/I4-SI
207254
Y7-207254
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T5B-4-15682/I4-SI 207254 Y7-207254 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,63 A,Emergency-Stop function,.. acts as a secure isolation device designed to prevent accidental machine startup and protect operators during maintenance routines. Safety switches incorporate interlocking mechanisms and highly visible actuators to comply with workplace safety regulations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): Yes
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 1000 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 6
More info
▲General specifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
