T5B-3-SOND*/V/SVB 907952 Y7-907952 EATON ELECTRIC Non-standard switch, T5B, 63 A, rear mounting, 3 contact u..
T5B-3-SOND*/V/SVB
907952
Y7-907952
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

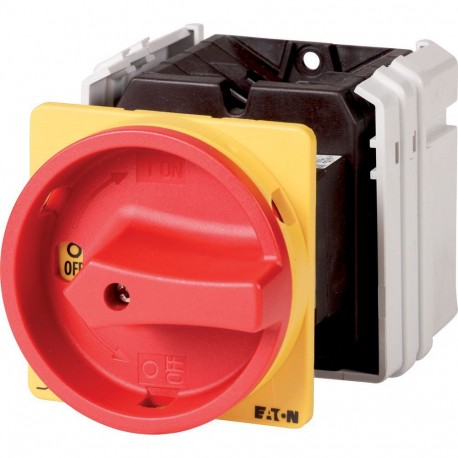

Eaton Moeller T5B-3-SOND*/V/SVB is a non-standard rotary switch engineered for complex motor control and manual circuit isolation tasks. Panel builders integrate switches of this variety into machinery to manage operational modes, safely disconnect power, and route heavy electrical loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 500 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Motor drive optional (EF007386): No
More info
▲General specifications
VDE 0660
IEC/EN 60947
IEC/EN 60204
