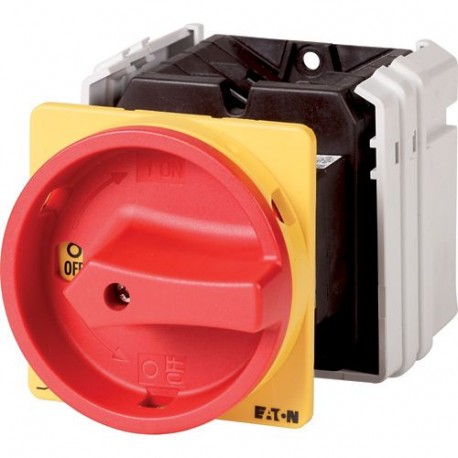

EATON - MOELLER T5B-3-8901/V/SVB T5B-3-8901/V/SVB 207422 Y7-207422 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 63 A, Emergency-St.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8901/V/SVB 207422 Y7-207422 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 63 A, Emergency-St..

T5B-3-8901/V/SVB

207422

Y7-207422

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N + 1 N/O + 1 N/C, 63 A, Emergency-Stop function, 90 °, Lockable in the 0 (Off) position, rear mounting T5B-3-8901/V/SVB Eaton Moeller® series T5B Main switch, T5B, 63 A, rear mounting, 3 contact unit(s), 3 pole + N, 1 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring, Lockable in the 0 (Off) position Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole + N, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5B-3-8901/V/SVB main switch directs and isolates electrical power across industrial machinery setups, providing reliable manual control for operational safety and maintenance. Such units are integrated into heavy-duty control panels to interrupt load currents effectively.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
207422
Model Code
T5B-3-8901/V/SVB
EAN
4015082074227
Product Length/Depth
171 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.66 kg
Certifications
CSA File No.: 012528
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
UL 60947-4-1
UL
CSA-C22.2 No. 60947-4-1-14
CE
IEC/EN 60947
UL File No.: E36332
CSA
CSA Class No.: 3211-05
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
