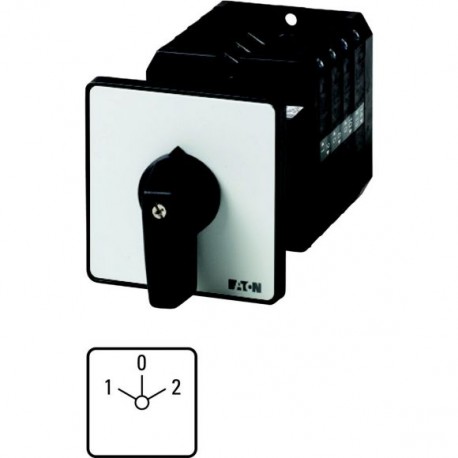

EATON - MOELLER T5B-3-8212/Z T5B-3-8212/Z 092383 Y7-92383 EATON ELECTRIC Changeoverswitches, Contacts: 6, 63 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-3-8212/Z 092383 Y7-92383 EATON ELECTRIC Changeoverswitches, Contacts: 6, 63 A, front plate: 1-0-2, 60 °,..

T5B-3-8212/Z

092383

Y7-92383

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 6, 63 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch 6 pole 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8212 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Changeoverswitches like the Eaton Moeller T5B-3-8212/Z are utilized in electrical distribution and motor circuits to redirect power between multiple alternate sources or loads. Their rugged design ensures dependable switching performance under heavy electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
092383
Model Code
T5B-3-8212/Z
EAN
4015080923831
Product Length/Depth
165 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.634 kg
Certifications
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA File No.: 012528
UL 60947-4-1
CE
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
IEC/EN 60204
UL
CSA Class No.: 3211-05
CSA
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
