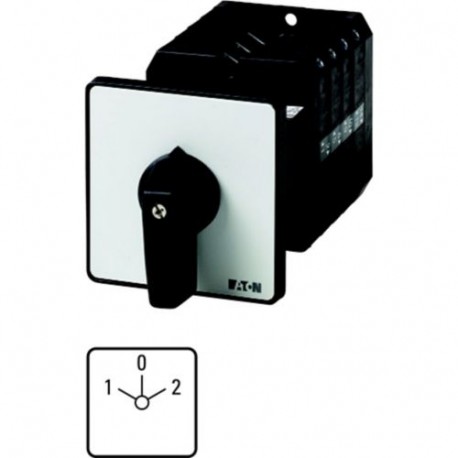

EATON - MOELLER T5B-2-8211/Z T5B-2-8211/Z 093082 Y7-93082 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-2-8211/Z 093082 Y7-93082 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °,..

T5B-2-8211/Z

093082

Y7-93082

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch 4-pole 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for intermediate panel installations, the Eaton Moeller changeoverswitch, part number T5B-2-8211/Z, provides dependable manual circuit switching and source selection across demanding automation architectures. Industrial operators utilize these versatile rotary components to direct electrical currents safely between distinct operational pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
093082
Model Code
T5B-2-8211/Z
EAN
4015080930822
Product Length/Depth
149 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.499 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
UL 60947-4-1
CSA-C22.2 No. 94
UL
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947
CSA Class No.: 3211-05
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA
CE
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
