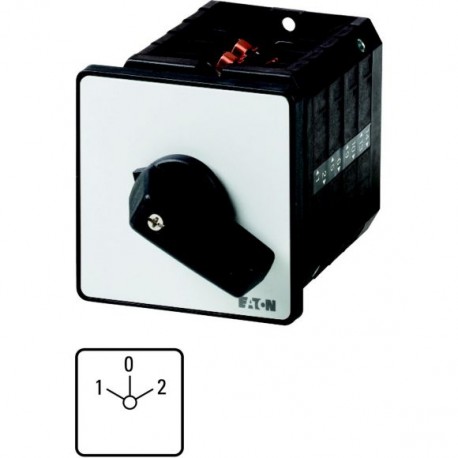

EATON - MOELLER T5B-2-8211/E T5B-2-8211/E 093094 Y7-93094 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-2-8211/E 093094 Y7-93094 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °,..

T5B-2-8211/E

093094

Y7-93094

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch 4-pole 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 2 contact unit(s), Contacts: 4, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8211

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Eaton Moeller, the T5B-2-8211/E changeoverswitch provides robust circuit switching for high-capacity industrial applications. Heavy-duty changeover switches enable operators to manually alternate large power feeds safely. Flush mounting guarantees a clean and secure panel profile.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T5B-2-8211/E
  • Catalogue code: 093094
  • Catalogue title: T5B-2-8211/E 093094 Y7-93094 EATON ELECTRIC Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °,..
  • Product description: General specifications Product Name Eaton Moeller® series T5B Changeover switch Catalog Number 093094 Model Code T5B-2-8211/E EAN 4015080930945 Product Length/Depth 108 mm Product Height 88 mm Product Width 88 mm Product
  • Manufacturer summary: Changeoverswitches, Contacts: 4, 63 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch 4-pole 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 2 contact

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
093094
Model Code
T5B-2-8211/E
EAN
4015080930945
Product Length/Depth
108 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.457 kg
Certifications
UL Category Control No.: NLRV
CSA File No.: 012528
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL 60947-4-1
CSA-C22.2 No. 94
UL
IEC/EN 60204
CE
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
