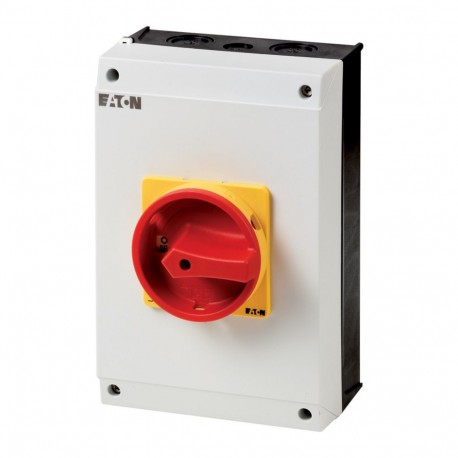

EATON - MOELLER T5B-1-SOND*/I4/SVB T5B-1-SOND*/I4/SVB 207511 Y7-207511 EATON ELECTRIC Non-standard switch, T5B, 63 A, surface mounting, 1 conta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-1-SOND*/I4/SVB 207511 Y7-207511 EATON ELECTRIC Non-standard switch, T5B, 63 A, surface mounting, 1 conta..

T5B-1-SOND*/I4/SVB

207511

Y7-207511

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, surface mounting, 1 contact unit(s) T5B-1-SOND*/I4/SVB Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, surface mounting, 1 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5B-1-SOND*/I4/SVB non-standard switch is a mechanical switching device engineered for safely controlling electrical circuits and isolating power during maintenance operations. Surface-mounted units of this classification are typically deployed in industrial control panels and machinery power entry points to manually direct or interrupt load currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
207511
Model Code
T5B-1-SOND*/I4/SVB
Product Length/Depth
240 mm
Product Height
169 mm
Product Width
160 mm
Product Weight
1.094 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
IEC/EN 60204
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
