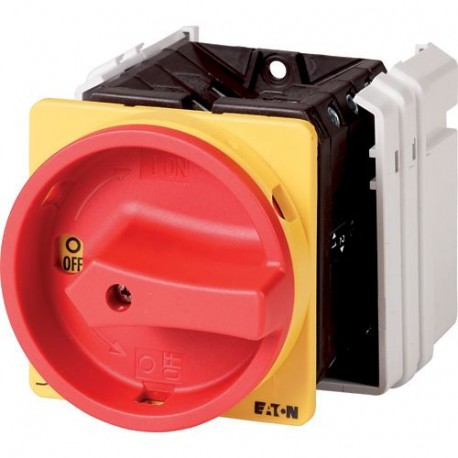

T5B-1-102/EA/SVB 094469 Y7-94469 EATON ELECTRIC Main switch, 2 pole, 63 A, Emergency-Stop function, 90 °, Lo..
T5B-1-102/EA/SVB
094469
Y7-94469
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller T5B-1-102/EA/SVB main switch provides robust circuit control and emergency shutdown capabilities for higher-amperage industrial applications.
Heavy-duty rotary disconnects are typically installed on machine enclosures to allow operators or maintenance personnel to completely isolate power feeds securely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated short-time withstand current lcw (EF007050): 1.3 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 2 kA
- Number of poles (EF001391): 2
- Motor drive optional (EF007386): No
More info
▲General specifications
CSA
CE
IEC/EN 60947-3
CSA Class No.: 3211-05
UL
UL 60947-4-1
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA File No.: 012528
UL Category Control No.: NLRV
