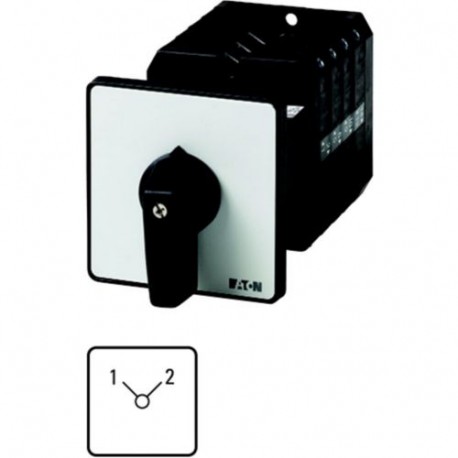

EATON - MOELLER T5-4-8223/Z T5-4-8223/Z 096008 Y7-96008 EATON ELECTRIC Changeoverswitches, Contacts: 8, 100 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-8223/Z 096008 Y7-96008 EATON ELECTRIC Changeoverswitches, Contacts: 8, 100 A, front plate: 1-2, 90 °, m..

T5-4-8223/Z

096008

Y7-96008

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 100 A, front plate: 1-2, 90 °, maintained, rear mounting Switch Switch; 8 poles; 100 A; Indicator plate: 1-2; 90 °; Eaton Moeller® series T5 Changeoverswitches, T5, 100 A, rear mounting, 4 contact unit(s), Contacts: 8, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8223 Changeover switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller T5-4-8223/Z changeoverswitch is a heavy-duty electromechanical control device designed for manually redirecting electrical circuits and managing operational states in industrial machinery. Rotary cam switches of this type are frequently integrated into complex distribution systems, motor control panels, and automation switchboards to facilitate secure manual switching under load.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 100 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 55 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Changeover switch
Catalog Number
096008
Model Code
T5-4-8223/Z
EAN
4015080960089
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.778 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
