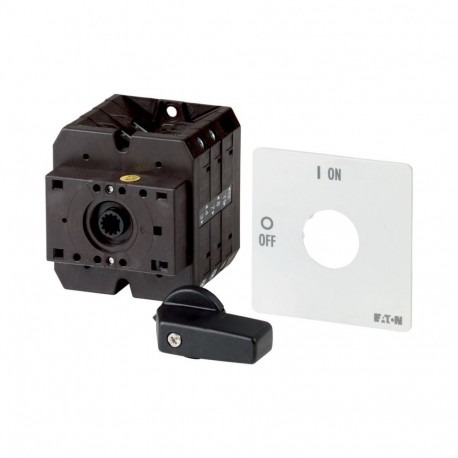

T5-4-8213/X 096013 Y7-96013 EATON ELECTRIC Changeover switch, 4p, Ie 80A, 1-0-2, 45°, maintained, replacemen..
T5-4-8213/X
096013
Y7-96013
EATON - MOELLER
1 Pcs.
Automation > Off-load switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for open-type panel integration, the Eaton Moeller T5-4-8213/X is a robust changeover switch built for high-capacity current routing. Multi-pole rotary switches are frequently installed within electrical distribution hubs to manage complex source selection and circuit switching requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Model (EF000010): Reverser
- Number of poles (EF001391): 4
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Rated permanent current Iu (EF001389): 100 A
- Rated operation current Ie at AC-3, 400 V (EF001392): 55 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Degree of protection (IP), front side (EF003118): IP00
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Housing material (EF001596): Plastic
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲Delivery program
Basic switch
Technical data
Switch-disconnector according to IEC/EN 60947-3
Damp heat, cyclic, to IEC 60068-2-30
2 x (2,5 - 16) mm2
2 x (1.5 - 10) mm2
