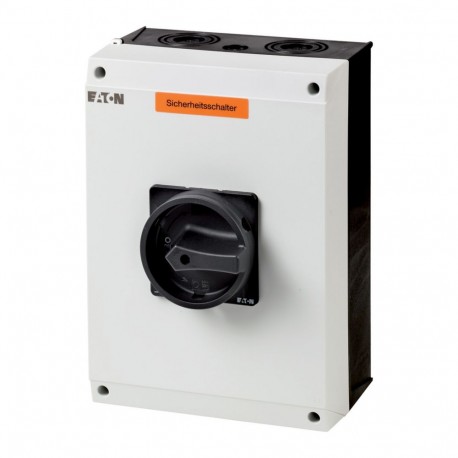

EATON - MOELLER T5-4-15682/I5-SI-SW T5-4-15682/I5-SI-SW 207286 Y7-207286 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,100A,Emergency stop functio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-15682/I5-SI-SW 207286 Y7-207286 EATON ELECTRIC safety switch,6p+1 N/O+1 N/C,100A,Emergency stop functio..

T5-4-15682/I5-SI-SW

207286

Y7-207286

EATON - MOELLER

1 Pcs.

safety switch,6p+1 N/O+1 N/C,100A,Emergency stop function,Lockable in position 0 with cover interlock,surface mount.,w. warning label „safety switch” T5-4-15682/I5-SI-SW Eaton Moeller® series T5 Safety switch, T5, 100 A, 6 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring, Lockable in position 0 with cover interlock, with warning label „safety switch” Safety switch, Product range: safety switch, Part group reference: T5, Stop Function: STOP function, With black rotary handle and locking ring, Notes: with warning label „safety switch”, 6 pole, Locking facility: Lockable in position 0 with cover interlock, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safety switch T5-4-15682/I5-SI-SW from Eaton Moeller is designed to interrupt electrical circuits under fault or emergency conditions to protect operators and machinery. Safety switches are vital in automated production lines where rapid, dependable power isolation is mandatory.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): Yes
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 6

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Insulated enclosure
Catalog Number
207286
Model Code
T5-4-15682/I5-SI-SW
EAN
4015082072865
Product Length/Depth
280 mm
Product Height
222 mm
Product Width
200 mm
Product Weight
2.238 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
