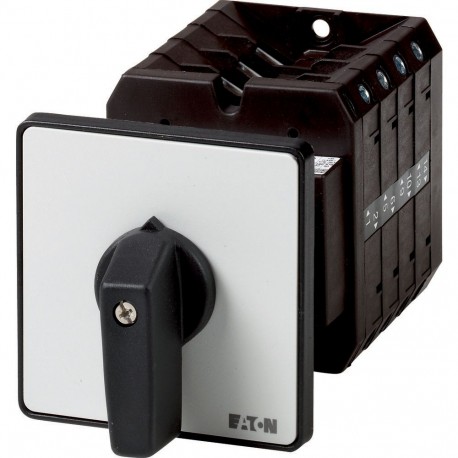

EATON - MOELLER T5-2-SOND*/Z T5-2-SOND*/Z 908022 Y7-908022 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-2-SOND*/Z 908022 Y7-908022 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s)

T5-2-SOND*/Z

908022

Y7-908022

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s) T5-2-SOND*/Z Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908022
Model Code
T5-2-SOND*/Z
Product Length/Depth
149 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.488 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947

ETIM for 908022 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 100 A
Rated permanent current at AC-23, 400 V (EF011777) 100 A
Rated permanent current at AC-21, 400 V (EF009165) 100 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Rated short-time withstand current lcw (EF007050) 1.7 kA
Rated operation power at AC-23, 400 V (EF007027) 55 kW
Switching power at 400 V (EF009166) 55 kW
Conditioned rated short-circuit current Iq (EF001444) 2 kA
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 88 mm
Height (EF000040) 88 mm
Depth (EF000049) 149 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
