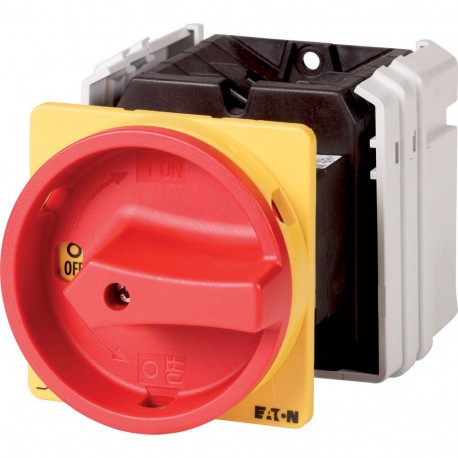

EATON - MOELLER T5-2-SOND*/V/SVB T5-2-SOND*/V/SVB 908004 Y7-908004 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 2 contact un.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-2-SOND*/V/SVB 908004 Y7-908004 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 2 contact un..

T5-2-SOND*/V/SVB

908004

Y7-908004

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s) T5-2-SOND*/V/SVB Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, 2 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908004
Model Code
T5-2-SOND*/V/SVB
Product Length/Depth
155 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.525 kg
Certifications
VDE 0660
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3

ETIM for 908004 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 100 A
Rated permanent current at AC-23, 400 V (EF011777) 100 A
Rated permanent current at AC-21, 400 V (EF009165) 100 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Rated short-time withstand current lcw (EF007050) 1.7 kA
Rated operation power at AC-23, 400 V (EF007027) 55 kW
Switching power at 400 V (EF009166) 55 kW
Conditioned rated short-circuit current Iq (EF001444) 2 kA
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) Yes
Colour control element (EF007167) Red
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 88 mm
Height (EF000040) 88 mm
Depth (EF000049) 155 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
