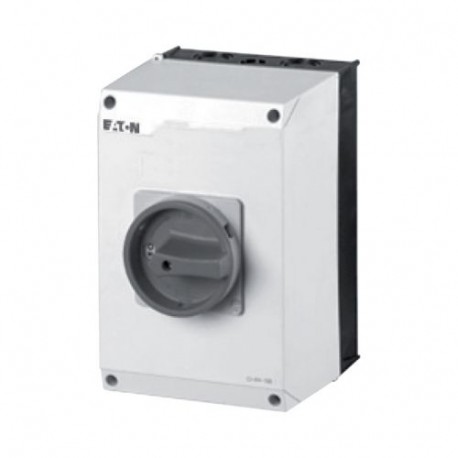

EATON - MOELLER T5-2-SOND*/I5/SVB-SW T5-2-SOND*/I5/SVB-SW 207529 Y7-207529 EATON ELECTRIC Non-standard switch, T5, 100 A, surface mounting, 2 con.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-2-SOND*/I5/SVB-SW 207529 Y7-207529 EATON ELECTRIC Non-standard switch, T5, 100 A, surface mounting, 2 con..

T5-2-SOND*/I5/SVB-SW

207529

Y7-207529

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, surface mounting, 2 contact unit(s) T5-2-SOND*/I5/SVB-SW Eaton Moeller® series T5 Non-standard switch, T5, 100 A, surface mounting, 2 contact unit(s), STOP function, With black rotary handle and locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Stop Function: STOP function, With black rotary handle and locking ring, Notes: customized version according to form, Degree of Protection: IP65, Design: surface mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A non-standard switch, T5, 100 A, surface mounting, 2 contact unit(s) such as the Eaton Moeller T5-2-SOND*/I5/SVB-SW provides secure surface-mounted local control and load switching for heavy machinery. Surface-mounted disconnects are typically installed directly on walls or machine frames for accessible power interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
207529
Model Code
T5-2-SOND*/I5/SVB-SW
Product Length/Depth
280 mm
Product Height
169 mm
Product Width
200 mm
Product Weight
1.774 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
IEC/EN 60947
