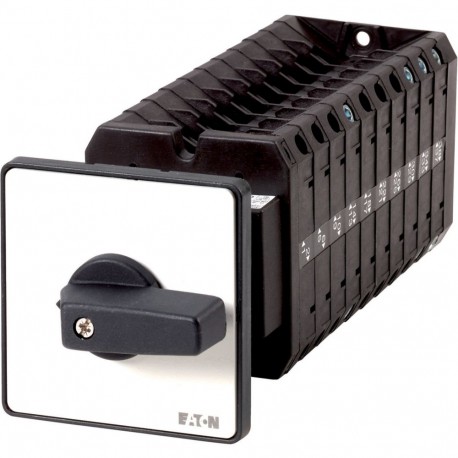

EATON - MOELLER T5-10-SOND*/Z T5-10-SOND*/Z 908030 Y7-908030 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 10 contact unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-10-SOND*/Z 908030 Y7-908030 EATON ELECTRIC Non-standard switch, T5, 100 A, rear mounting, 10 contact unit..

T5-10-SOND*/Z

908030

Y7-908030

EATON - MOELLER

10 Pcs.

Non-standard switch, T5, 100 A, rear mounting, 10 contact unit(s) T5-10-SOND*/Z Eaton Moeller® series T5 Non-standard switch, T5, 100 A, rear mounting, 10 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5, Notes: customized version according to form, Degree of Protection: Front IP65, Design: rear mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 10 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller non-standard switch model T5-10-SOND*/Z is engineered for specialized circuit configurations within industrial machinery. Rear mounting formats allow these switches to be secured behind control panels while maintaining clean exterior aesthetics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 20

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Non-standard switch
Catalog Number
908030
Model Code
T5-10-SOND*/Z
Product Length/Depth
281 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.567 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
