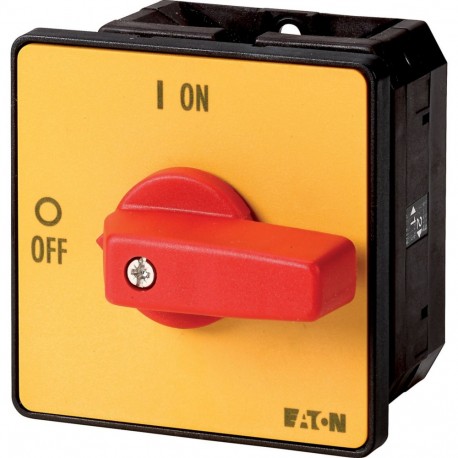

EATON - MOELLER T5-1-8200/E-RT T5-1-8200/E-RT 097225 Y7-97225 EATON ELECTRIC On-Off switch, 1 pole, 100 A, Emergency-Stop function, 90 °, f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-1-8200/E-RT 097225 Y7-97225 EATON ELECTRIC On-Off switch, 1 pole, 100 A, Emergency-Stop function, 90 °, f..

T5-1-8200/E-RT

097225

Y7-97225

EATON - MOELLER

1 Pcs.

On-Off switch, 1 pole, 100 A, Emergency-Stop function, 90 °, flush mounting ON-OFF Disconnector Switch 1 Pole 100 A Red/Yellow 90 Handle Eaton Moeller® series T5 On-Off switch, T5, 100 A, flush mounting, 1 contact unit(s), 1 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, Product range: On-Off switch, Part group reference: T5, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, 1 pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5-1-8200/E-RT on-off switch provides secure circuit interruption with integrated emergency-stop capabilities for heavy industrial equipment. These reliable devices ensure operators can cut system power instantly when hazards arise.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 415 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 1
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 On-off switch
Catalog Number
097225
Model Code
T5-1-8200/E-RT
EAN
4015080972259
Product Length/Depth
91 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.329 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
