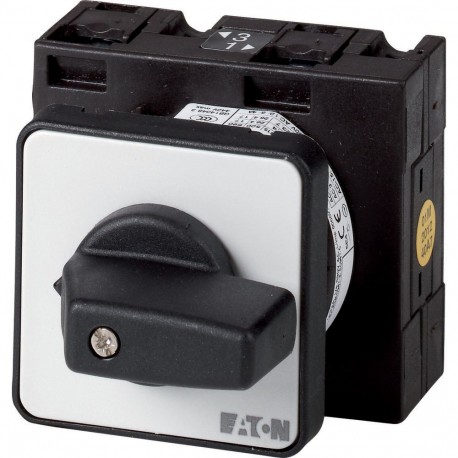

T3-9-SOND*/EZ 907880 Y7-907880 EATON ELECTRIC Non-standard switch, T3, 32 A, centre mounting, 9 contact unit..
T3-9-SOND*/EZ
907880
Y7-907880
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T3-9-SOND*/EZ is a non-standard switch designed for industrial control panels, featuring a centre mounting configuration and multi-unit contact arrangement.
Switches of this type are commonly integrated into machinery and electrical distribution systems to safely route power, manage load currents, and manually control operational circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
