> EATON - MOELLER > Disconnectors and Cam Switches > 080822

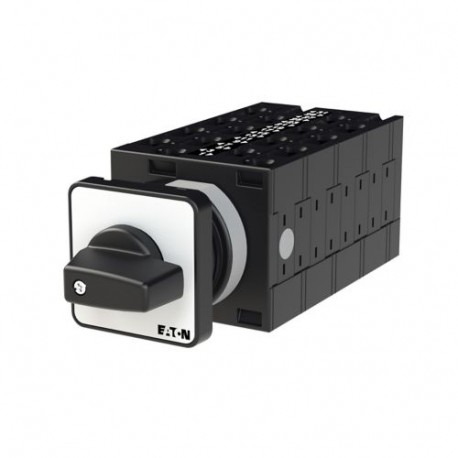

EATON - MOELLER T3-8-8372/E T3-8-8372/E 080822 Y7-80822 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, m.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-8-8372/E 080822 Y7-80822 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, m..

T3-8-8372/E

080822

Y7-80822

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 16, 32 A, front plate: 1-2, 90 °, maintained, flush mounting Switch 16 pole 32 A Indicator plate: 1-2 90° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 8 contact unit(s), Contacts: 16, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8372 Changeover switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 16, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 8 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
080822
Model Code
T3-8-8372/E
EAN
4015080808220
Product Length/Depth
160 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.412 kg
Certifications
CE
CSA File No.: 012528
IEC/EN 60947
IEC/EN 60947-3
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
UL
VDE 0660
CSA
IEC/EN 60204
UL 60947-4-1
CSA-C22.2 No. 94
CSA Class No.: 3211-05
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 080822 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Reverser
Number of poles (EF001391) 8
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 12 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
