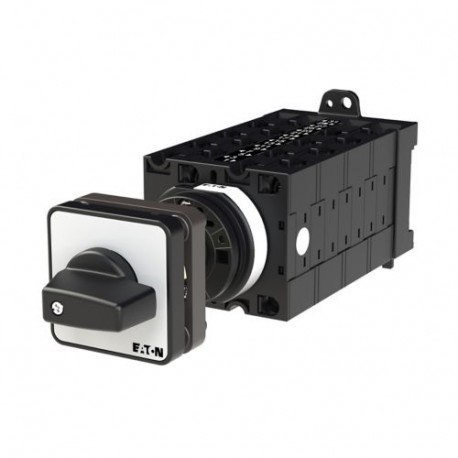

EATON - MOELLER T3-8-8364/Z T3-8-8364/Z 099805 Y7-99805 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-0-2, 60 °,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-8-8364/Z 099805 Y7-99805 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-0-2, 60 °,..

T3-8-8364/Z

099805

Y7-99805

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 16, 32 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch 16 poles 32 A Indicator plate: 1-0-2 60° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 8 contact unit(s), Contacts: 16, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8364

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Eaton Moeller, the T3-8-8364/Z changeoverswitch routes electrical pathways efficiently across complex industrial machinery. Industrial panels utilize changeover mechanisms to manually or semi-automatically alternate power sources or control configurations safely under load. This rear-mounted unit handles high-contact switching demands reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-8-8364/Z
  • Catalogue code: 099805
  • Catalogue title: T3-8-8364/Z 099805 Y7-99805 EATON ELECTRIC Changeoverswitches, Contacts: 16, 32 A, front plate: 1-0-2, 60 °,..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Changeover switch Catalog Number 099805 Model Code T3-8-8364/Z EAN 4015080998051 Product Length/Depth 202 mm Product Height 54 mm Product Width 61 mm Product W
  • Manufacturer summary: Changeoverswitches, Contacts: 16, 32 A, front plate: 1-0-2, 60 °, maintained, rear mounting Switch Switch 16 poles 32 A Indicator plate: 1-0-2 60° Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 8 c

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
099805
Model Code
T3-8-8364/Z
EAN
4015080998051
Product Length/Depth
202 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.446 kg
Certifications
UL 60947-4-1
VDE 0660
CSA Class No.: 3211-05
IEC/EN 60947
IEC/EN 60947-3
CE
CSA
IEC/EN 60204
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
