T3-6-SOND*/EA/SVB-SW 908085 Y7-908085 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 6 contac..
T3-6-SOND*/EA/SVB-SW
908085
Y7-908085
EATON - MOELLER
10 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

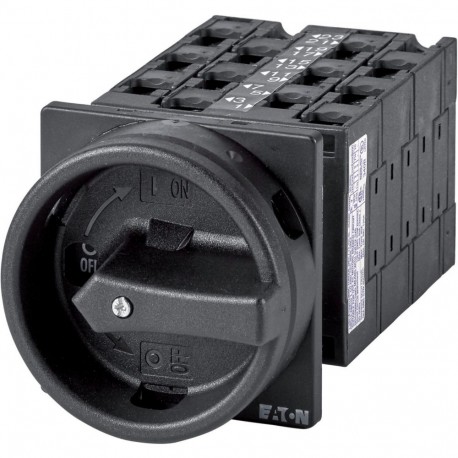

An Eaton Moeller T3-6-SOND*/EA/SVB-SW non-standard switch provides flexible manual control and circuit redirection for specialized electrical setups. These control switches are typically deployed in custom machinery enclosures to handle multi-pole routing, operational mode selection, and auxiliary contact actuation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
More info
▲General specifications
IEC/EN 60947
IEC/EN 60204
VDE 0660
