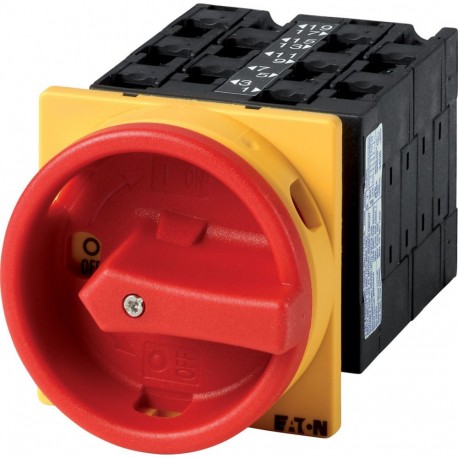

EATON - MOELLER T3-5-SOND*/EA/SVB T3-5-SOND*/EA/SVB 907865 Y7-907865 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 5 contact u.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-SOND*/EA/SVB 907865 Y7-907865 EATON ELECTRIC Non-standard switch, T3, 32 A, flush mounting, 5 contact u..

T3-5-SOND*/EA/SVB

907865

Y7-907865

EATON - MOELLER

10 Pcs.

Non-standard switch, T3, 32 A, flush mounting, 5 contact unit(s) T3-5-SOND*/EA/SVB Eaton Moeller® series T3 Non-standard switch, T3, 32 A, flush mounting, 5 contact unit(s), Emergency switching off function, With red rotary handle and yellow locking ring Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller non-standard switch is a specialized electrical component utilized for controlling circuits, routing signals, or managing custom switching logic in industrial control panels. Engineers typically install these modular switching devices in machinery and distribution setups where standard off-the-shelf rotary configurations do not meet specific operational requirements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Non-standard switch
Catalog Number
907865
Model Code
T3-5-SOND*/EA/SVB
Product Length/Depth
150 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.322 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947
VDE 0660

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
