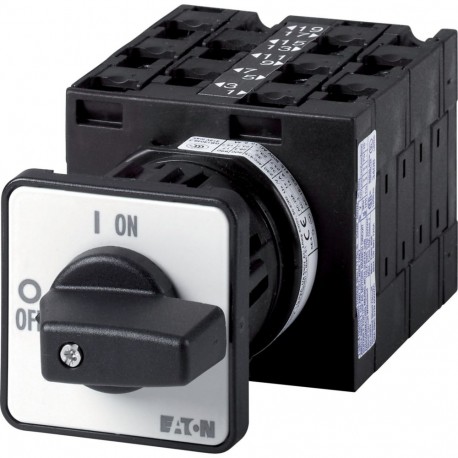

EATON - MOELLER T3-5-8531/Z T3-5-8531/Z 020734 Y7-20734 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-8531/Z 020734 Y7-20734 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde..

T3-5-8531/Z

020734

Y7-20734

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde, 45 °, maintained, rear mounting Switch 10-pole 32 A Indicator Plate: Phase-0-Erde Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, rear mounting, 5 contact unit(s), Contacts: 10, 45 °, maintained, With 0 (Off) position, Phase-0-Erde, Design number 8531 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: Phase-0-Erde

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-5-8531/Z changeover switch provides heavy-duty manual switching capabilities for redirecting electrical phases and managing complex load distributions in industrial settings. These reliable components allow operators to manually alternate circuit connections within control cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 6
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
020734
Model Code
T3-5-8531/Z
EAN
4015080207344
Product Length/Depth
167 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.29 kg
Certifications
CSA-C22.2 No. 94
UL 60947-4-1
CE
IEC/EN 60947
UL
UL File No.: E36332
UL Category Control No.: NLRV
VDE 0660
CSA Class No.: 3211-05
CSA
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
