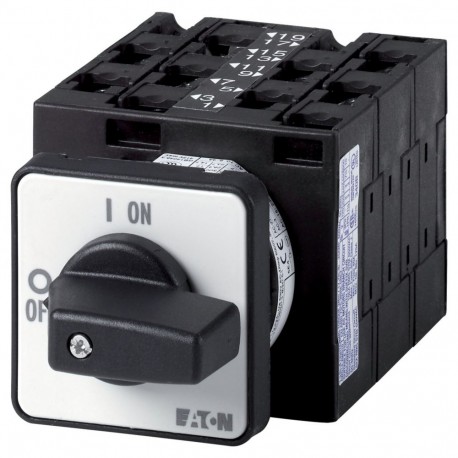

EATON - MOELLER T3-5-8531/E T3-5-8531/E 020731 Y7-20731 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-8531/E 020731 Y7-20731 EATON ELECTRIC Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde..

T3-5-8531/E

020731

Y7-20731

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 10, 32 A, front plate: Phase-0-Erde, 45 °, maintained, flush mounting Switch 10-pole 32 A Indicator Plate: Phase-0-Erde Eaton Moeller® series T3 Changeoverswitches, T3, 32 A, flush mounting, 5 contact unit(s), Contacts: 10, 45 °, maintained, With 0 (Off) position, Phase-0-Erde, Design number 8531 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: Phase-0-Erde

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller part T3-5-8531/E is a changeover switch used to redirect electrical currents between multiple alternative circuits or supply lines in industrial power setups. Reverser switches are frequently applied in motor control systems, generator transfer setups, and phase testing panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 0
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Changeover switch
Catalog Number
020731
Model Code
T3-5-8531/E
EAN
4015080207313
Product Length/Depth
125 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.292 kg
Certifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
UL 60947-4-1
CE
CSA
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
IEC/EN 60204
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
