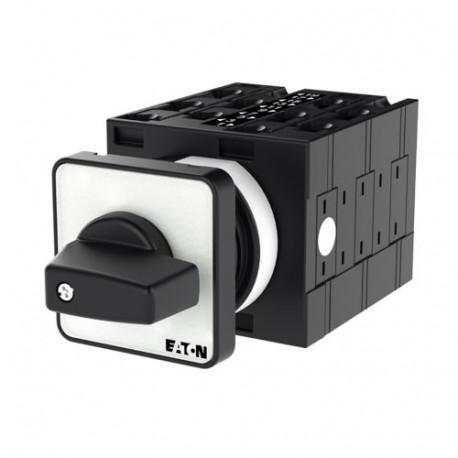

EATON - MOELLER T3-5-8453/E T3-5-8453/E 049998 Y7-49998 EATON ELECTRIC Reversing multi-speed switches, Contacts: 10, 32 A, 2 speeds, 2 s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-8453/E 049998 Y7-49998 EATON ELECTRIC Reversing multi-speed switches, Contacts: 10, 32 A, 2 speeds, 2 s..

T3-5-8453/E

049998

Y7-49998

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches, Contacts: 10, 32 A, 2 speeds, 2 separate windings, front plate: 2-1-0-1-2, 60 °, maintained, flush mounting Multi-speed switch with inversion; 10 poles; 32 A; 2-speed; Eaton Moeller® series T3 Reversing multi-speed switches, T3, 32 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 2-1-0-1-2, Design number 8453

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Produced by Eaton Moeller, the T3-5-8453/E reversing multi-speed switch regulates advanced motor velocity adjustments in industrial plants. Multi-speed switches enable operators to control separate motor windings for customized operating speeds. Flush mounting architecture provides a secure, flush panel finish.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-5-8453/E
  • Catalogue code: 049998
  • Catalogue title: T3-5-8453/E 049998 Y7-49998 EATON ELECTRIC Reversing multi-speed switches, Contacts: 10, 32 A, 2 speeds, 2 s..
  • Product description: General specifications Product Name Eaton Moeller® series T3 Reversing multi-speed switch Catalog Number 049998 Model Code T3-5-8453/E EAN 4015080499985 Product Length/Depth 125 mm Product Height 54 mm Product Width 61 m
  • Manufacturer summary: Reversing multi-speed switches, Contacts: 10, 32 A, 2 speeds, 2 separate windings, front plate: 2-1-0-1-2, 60 °, maintained, flush mounting Multi-speed switch with inversion; 10 poles; 32 A; 2-speed; Eaton Moeller® serie

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing multi-speed switch
Catalog Number
049998
Model Code
T3-5-8453/E
EAN
4015080499985
Product Length/Depth
125 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.292 kg
Certifications
UL Category Control No.: NLRV
CSA-C22.2 No. 94
CSA Class No.: 3211-05
CSA
CE
IEC/EN 60947-3
UL File No.: E36332
IEC/EN 60204
UL
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA File No.: 012528
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
