EATON - MOELLER T3-5-8346/V/SVB T3-5-8346/V/SVB 085564 Y7-85564 EATON ELECTRIC Main switch, 10-pole, 32 A, Emergency-Stop function, 90 °, re.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-8346/V/SVB 085564 Y7-85564 EATON ELECTRIC Main switch, 10-pole, 32 A, Emergency-Stop function, 90 °, re..

T3-5-8346/V/SVB

085564

Y7-85564

EATON - MOELLER

1 Pcs.

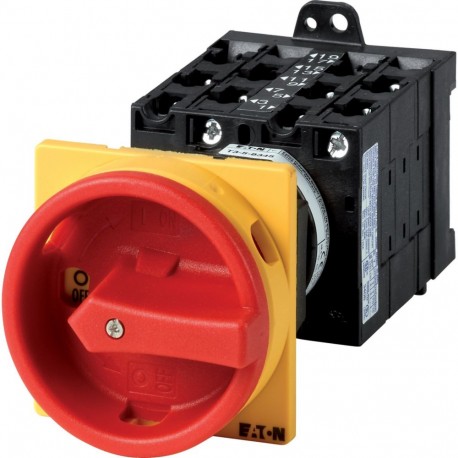

Main switch, 10-pole, 32 A, Emergency-Stop function, 90 °, rear mounting General Switch 10 poles 32 A 90° Bottom panel mount Handle Eaton Moeller® series T3 Main switch, T3, 32 A, rear mounting, 5 contact unit(s), 10-pole, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 10-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-5-8346/V/SVB main switch provides robust multi-pole power isolation with integrated emergency-stop capabilities for complex machine control architectures. Industrial installations rely on these heavy-duty disconnect switches to secure energy feeds during plant servicing. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 10
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
085564
Model Code
T3-5-8346/V/SVB
EAN
4015080855644
Product Length/Depth
167 mm
Product Height
74 mm
Product Width
65 mm
Product Weight
0.343 kg
Certifications
UL Category Control No.: NLRV
VDE 0660
CSA File No.: 012528
CSA Class No.: 3211-05
IEC/EN 60947
CSA-C22.2 No. 94
UL
UL File No.: E36332
IEC/EN 60947-3
CE
UL 60947-4-1
CSA
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
